OPERATION

F-040740L

Figure 5

Throttle Control

Lever

Blade Rotation

Control

Brake Pedal

Lift

Lever

Speed Control

Pedal

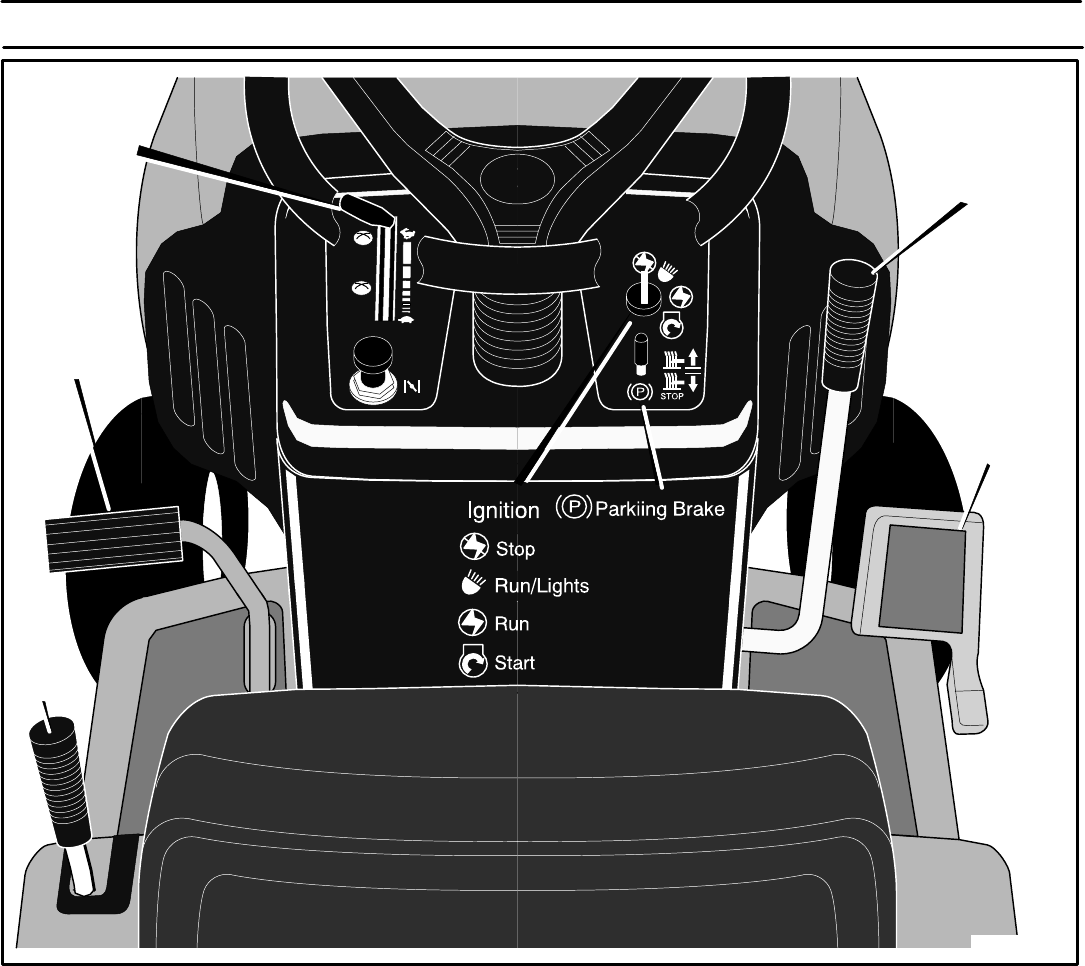

LOCATION OF CONTROLS

BLADE ROTATION CONTROL: Use the blade rotation

control to start and stop the rotation of the blades.

BRAKE PEDAL: Use the brake pedal to quickly stop.

HEADLIGHT SWITCH: The headlight switch is the first part

of the ignition switch. To use the lights with the engine running, turn

the key to the position for the lights.

IGNITION SWITCH: Use the ignition switch to start and stop

the engine.

AUTOMATIC DRIVE DISCONNECT: Use the auto-

matic drive disconnect, located under the seat, to disengage the

transmission.

LIFT LEVER: Use the lift lever to change the height of cut.

PARKING BRAKE LEVER: Use the parking brake lever

to engage the brake when you leave the unit.

SPEED CONTROL PEDAL: Use the speed control pedal

to change the speed and the direction of the unit.

THROTTLE CONTROL LEVER: Use the throttle control

lever to increase or decrease the speed of the engine.
