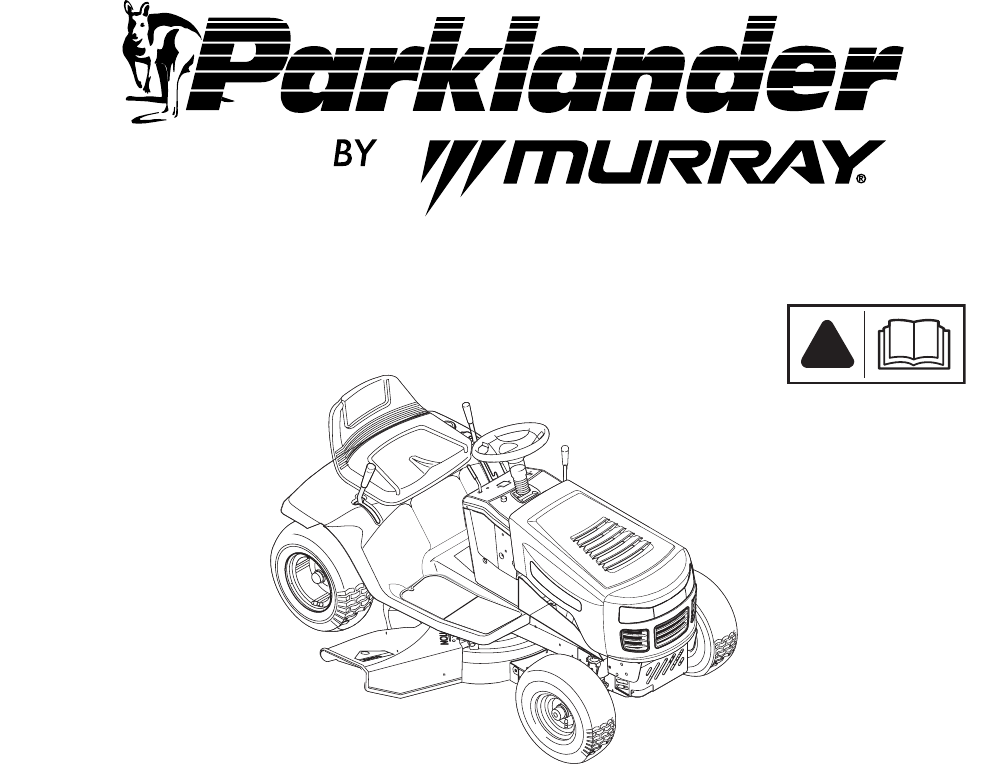

Murray Parklander2690999 Operator's Manual

Part No. 1752618Revision ‘-’Riding Mower Model MT60Model No. Description 2690997 Parklander, 14.5HP w/38" Mower Deck 2690998 Parklander, 15.5H

10 www.murray.com www.parklands.netOperator SafetyInternational PictorialsIMPORTANT: The following pictorials are lo cated on your unit or o

11Operator SafetyOperating SafetyPower equipment is only as safe as the operator. If it is misused, ornot properly maintained, it can be dangerous!

12 www.murray.com www.parklands.netOperator SafetySlope OperationYou could be seriously injured or even killed if you use this unit on toost

13Operator SafetySafe Operation PracticesFor Ride-On (Riding) Rotary Mower Machines Training 1. Read the instructions carefully. Be familiar with th

14 www.murray.com www.parklands.netOperation (Continued)6. Use care when pulling loads or using heavy equipment. a. Use only approved draw

15AssemblyAll fasteners are in the parts bag. Do not discard any parts or material until the unit is assembled. WARNING: Before doing any as sembly

16 www.murray.com www.parklands.netHow To Install The Battery Cables (Figure 4) WARNING: To prevent sparks, fasten the red cable to the po

17Features and ControlsLocation of Controls - Gear Drive Models (Figure 5) Blade Rotation Control (A) — Use the blade rota tion control to start an

18 www.murray.com www.parklands.netOperationBefore OperatingCheck/Add Engine Oil IMPORTANT: Some units are shipped from the factory without

19Operation1. Raise the tractor hood.2. Clean the fuel cap area of dirt and debris. Remove the fuel cap.3. Fill the fuel tank (A) with fuel. To al

Thank you for purchasing this quality-built MURRAY PARKLANDER mower. We are pleased that you’ve placed your confidence in the MURRAY PARKLANDER brand.

20 www.murray.com www.parklands.netOperationHow To Stop The Unit (Figure 5)1. Completely push the clutch/brake pedal (B) forward to stop th

21OperationMowing and Bagging Tips 1. For a lawn to look better, check the cutting level of the mower housing. See “How To Level The Mower Housing”

22 www.murray.com www.parklands.netOperationDriving and Stopping the UnitHow To Drive Forward 1. (Figure 19) The automatic drive discon nec

23OperationMowingHow To Operate With The Mower Housing IMPORTANT: When you operate with the mower housing, always operate with the throttle control i

24 www.murray.com www.parklands.netOperationMowing and Bagging Tips 1. For a lawn to look better, check the cutting level of the mower hous

25Maintenance ChartMaintenanceTRACTOR AND MOWEREvery 8 Hours or DailyCheck safety interlock systemClean debris off tractor and mower deckClean debris

26 www.murray.com www.parklands.netGeneral Recommendations 1. The owner’s responsibility is to maintain this product. This will extend the

274. Check the blade(s). Keep a sharp edge on the blade(s). A blade that is not sharp will cause the tips of the grass to become brown. 5. (Figure

28 www.murray.com www.parklands.netHow To Charge The Battery (Figure 4) WARNING: When you charge the battery, do not smoke. Keep the batte

29LubricationWhere To Lubricate (Gear Drive Models - Figure 16, Hydro-Drive Models - Figure 17) Models with grease fittings: Lubricate with grease gu

3147253DAACFE(#4)(#9)(#8)GBDC(#7)BE(#5)CBDAEF(#3)(#6)F(#1)CAAAFBBCDE(#2)HEBGCADF6EBGCADF8BAGNot for Reproduction

30 www.murray.com www.parklands.netCarburetor AdjustmentNever make adjustments to the carburetor. The carburetor was set at the factory to o

31Storage (over 30 days) WARNING: Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death.When

32 www.murray.com www.parklands.netTroubleshootingTroubleshooting ChartProblem CorrectionThe engine will not start. 1. Follow the steps, “

33Troubleshooting Chart ContinuedProblem CorrectionThe grass does not discharge correctly. 1. Stop the engine. Clean the mower housing. 2. Raise

34 www.murray.com www.parklands.netBRIGGS & STRATTON POWER PRODUCTS GROUP, L.L.C. OWNER WARRANTY POLICYLIMITED WARRANTYBriggs & Stra

35WarrantiesNot for Reproduction

Specifications2690997 2690998 2690999TractorDeck Size (inches) 38 38 42Transmission Type Gear Hydro HydroGround Speed - Fwd/Rev (mph) 5.6 / 3.5 5.6 /

4 www.murray.com www.parklands.net11CDEAB12EDABCDF1314 15ABCABCAB9 10ABGABDCEFNot for Reproduction

516 171918ABCABDBC D7101935Not for Reproduction

6 www.murray.com www.parklands.netBCDAA11223 3,4,5,6A21 2311223 3,4,5,62220D123456ADC13254667CFEIHGBBCNot for Reproduction

7A2425AABCDECNot for Reproduction

8 www.murray.com www.parklands.net28(#1)(#2)(#3)(#5)(#6)(#7)(#8)(#9)(#10)(#4)2627A B CDEF GHI JK M N OLAB C D E F G HIJ K L Mmax 10°max ±15

English 9Table of ContentsOperator Safety ......... 10Assembly .......... 15Front Wheels ...
